Backup Configuration

The Backup Create page lets you configure a schedule, enable encryption and specify the storage location for your backups.

Schedule

Select the first option to perform a one-time backup, or select the second option to schedule recurring backups. Selecting Recurring Backups lets you configure following two fields:

  • Schedule: This field accepts
    • Standard cron expressions, such as "0 * * * *"
    • Descriptors, such as "@midnight" or "@every 1h30m"
  • Retention Count: This value specifies how many backup files must be retained. If files exceed the given retentionCount, the oldest files will be deleted. The default value is 10.

YAML Directive NameDescription
scheduleProvide the cron string for scheduling recurring backups.
retentionCountProvide the number of backup files to be retained.

Encryption

The rancher-backup gathers resources by making calls to the kube-apiserver. Objects returned by apiserver are decrypted, so even if encryption At rest is enabled, even the encrypted objects gathered by the backup will be in plaintext.

To avoid storing them in plaintext, you can use the same encryptionConfig file that was used for at-rest encryption, to encrypt certain resources in your backup.

Important: You must save the encryptionConfig file, because it won’t be saved by the rancher-backup operator. The same encryptionFile needs to be used when performing a restore.

The operator consumes this encryptionConfig as a Kubernetes Secret, and the Secret must be in the operator’s namespace. Rancher installs the rancher-backup operator in the cattle-resources-system namespace, so create this encryptionConfig secret in that namespace.

For the EncryptionConfiguration, you can use the sample file provided in the Kubernetes documentation.

To create the Secret, the encryption configuration file must be named encryption-provider-config.yaml, and the --from-file flag must be used to create this secret.

Save the EncryptionConfiguration in a file called encryption-provider-config.yaml and run this command:

kubectl create secret generic encryptionconfig \
--from-file=./encryption-provider-config.yaml \
-n cattle-resources-system

This will ensure that the secret contains a key named encryption-provider-config.yaml, and the operator will use this key to get the encryption configuration.

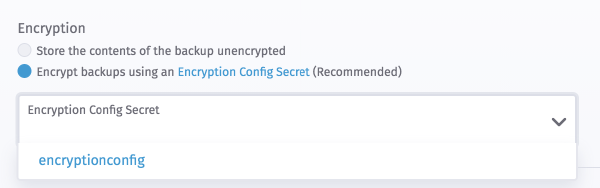

The Encryption Config Secret dropdown will filter out and list only those Secrets that have this exact key

In the example command above, the name encryptionconfig can be changed to anything.

YAML Directive NameDescription
encryptionConfigSecretNameProvide the name of the Secret from cattle-resources-system namespace, that contains the encryption config file.

Storage Location

If the StorageLocation is specified in the Backup, the operator will retrieve the backup location from that particular S3 bucket. If not specified, the operator will try to find this file in the default operator-level S3 store, and in the operator-level PVC store. The default storage location is configured during the deployment of the rancher-backup operator.

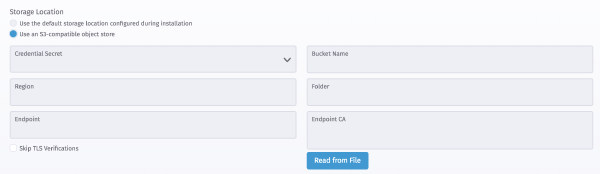

Selecting the first option stores this backup in the storage location configured while installing the rancher-backup chart. The second option lets you configure a different S3 compatible storage provider for storing the backup.

S3

The S3 storage location contains the following configuration fields:

  1. Credential Secret (optional): If you need to use the AWS Access keys Secret keys to access s3 bucket, create a secret with your credentials with keys and the directives accessKey and secretKey. It can be in any namespace. An example secret is here. This directive is unnecessary if the nodes running your operator are in EC2 and set up with IAM permissions that allow them to access S3, as described in this section. The Credential Secret dropdown lists the secrets in all namespaces.
  2. Bucket Name: The name of the S3 bucket where backup files will be stored.
  3. Region (optional): The AWS region where the S3 bucket is located. This field isn't needed for configuring MinIO.
  4. Folder (optional): The name of the folder in the S3 bucket where backup files will be stored. Nested folders (e.g., rancher/cluster1) are not supported. If this field is left empty, the default behavior is to store the backup files in the root folder of the S3 bucket.
  5. Endpoint: The endpoint that is used to access S3 in the region of your bucket.
  6. Endpoint CA (optional): This should be the Base64 encoded CA cert. For an example, refer to the example S3 compatible configuration.
  7. Skip TLS Verifications (optional): Set to true if you are not using TLS.
YAML Directive NameDescriptionRequired
credentialSecretNameIf you need to use the AWS Access keys Secret keys to access s3 bucket, create a secret with your credentials with keys and the directives accessKey and secretKey. It can be in any namespace as long as you provide that namespace in credentialSecretNamespace. An example secret is here. This directive is unnecessary if the nodes running your operator are in EC2 and set up with IAM permissions that allow them to access S3, as described in this section.
credentialSecretNamespaceThe namespace of the secret containing the credentials to access S3. This directive is unnecessary if the nodes running your operator are in EC2 and set up with IAM permissions that allow them to access S3, as described in this section.
bucketNameThe name of the S3 bucket where backup files will be stored.
folderThe name of the folder in the S3 bucket where backup files will be stored. Nested folders (e.g., rancher/cluster1) are not supported. If this field is left empty, the default behavior is to store the backup files in the root folder of the S3 bucket.
regionThe AWS region where the S3 bucket is located.
endpointThe endpoint that is used to access S3 in the region of your bucket.
endpointCAThis should be the Base64 encoded CA cert. For an example, refer to the example S3 compatible configuration.
insecureTLSSkipVerifySet to true if you are not using TLS.

Example S3 Storage Configuration

s3:
credentialSecretName: s3-creds
credentialSecretNamespace: default
bucketName: rancher-backups
folder: rancher
region: us-west-2
endpoint: s3.us-west-2.amazonaws.com

Example MinIO Configuration

s3:
credentialSecretName: minio-creds
bucketName: rancherbackups
endpoint: minio.35.202.130.254.sslip.io
endpointCA: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURHakNDQWdLZ0F3SUJBZ0lKQUtpWFZpNEpBb0J5TUEwR0NTcUdTSWIzRFFFQkN3VUFNQkl4RURBT0JnTlYKQkFNTUIzUmxjM1F0WTJFd0hoY05NakF3T0RNd01UZ3lOVFE1V2hjTk1qQXhNREk1TVRneU5UUTVXakFTTVJBdwpEZ1lEVlFRRERBZDBaWE4wTFdOaE1JSUJJakFOQmdrcWhraUc5dzBCQVFFRkFBT0NBUThBTUlJQkNnS0NBUUVBCjA4dnV3Q2Y0SEhtR2Q2azVNTmozRW5NOG00T2RpS3czSGszd1NlOUlXQkwyVzY5WDZxenBhN2I2M3U2L05mMnkKSnZWNDVqeXplRFB6bFJycjlpbEpWaVZ1NFNqWlFjdG9jWmFCaVNsL0xDbEFDdkFaUlYvKzN0TFVTZSs1ZDY0QQpWcUhDQlZObU5xM3E3aVY0TE1aSVpRc3N6K0FxaU1Sd0pOMVVKQTZ6V0tUc2Yzc3ByQ0J2dWxJWmZsVXVETVAyCnRCTCt6cXZEc0pDdWlhNEEvU2JNT29tVmM2WnNtTGkwMjdub3dGRld3MnRpSkM5d0xMRE14NnJoVHQ4a3VvVHYKQXJpUjB4WktiRU45L1Uzb011eUVKbHZyck9YS2ZuUDUwbk8ycGNaQnZCb3pUTStYZnRvQ1d5UnhKUmI5cFNTRApKQjlmUEFtLzNZcFpMMGRKY2sxR1h3SURBUUFCbzNNd2NUQWRCZ05WSFE0RUZnUVU5NHU4WXlMdmE2MTJnT1pyCm44QnlFQ2NucVFjd1FnWURWUjBqQkRzd09ZQVU5NHU4WXlMdmE2MTJnT1pybjhCeUVDY25xUWVoRnFRVU1CSXgKRURBT0JnTlZCQU1NQjNSbGMzUXRZMkdDQ1FDb2wxWXVDUUtBY2pBTUJnTlZIUk1FQlRBREFRSC9NQTBHQ1NxRwpTSWIzRFFFQkN3VUFBNElCQVFER1JRZ1RtdzdVNXRQRHA5Q2psOXlLRW9Vd2pYWWM2UlAwdm1GSHpubXJ3dUVLCjFrTkVJNzhBTUw1MEpuS29CY0ljVDNEeGQ3TGdIbTNCRE5mVVh2anArNnZqaXhJYXR2UWhsSFNVaWIyZjJsSTkKVEMxNzVyNCtROFkzelc1RlFXSDdLK08vY3pJTGh5ei93aHRDUlFkQ29lS1dXZkFiby8wd0VSejZzNkhkVFJzNwpHcWlGNWZtWGp6S0lOcTBjMHRyZ0xtalNKd1hwSnU0ZnNGOEcyZUh4b2pOKzdJQ1FuSkg5cGRIRVpUQUtOL2ppCnIvem04RlZtd1kvdTBndEZneWVQY1ZWbXBqRm03Y0ZOSkc4Y2ZYd0QzcEFwVjhVOGNocTZGeFBHTkVvWFZnclMKY1VRMklaU0RJd1FFY3FvSzFKSGdCUWw2RXBaUVpWMW1DRklrdFBwSQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0t

Example credentialSecret

apiVersion: v1
kind: Secret
metadata:
name: creds
type: Opaque
data:
accessKey: <Enter your base64-encoded access key>
secretKey: <Enter your base64-encoded secret key>

IAM Permissions for EC2 Nodes to Access S3

There are two ways to set up the rancher-backup operator to use S3 as the backup storage location.

One way is to configure the credentialSecretName in the Backup custom resource, which refers to AWS credentials that have access to S3.

If the cluster nodes are in Amazon EC2, the S3 access can also be set up by assigning IAM permissions to the EC2 nodes so that they can access S3.

To allow a node to access S3, follow the instructions in the AWS documentation to create an IAM role for EC2. When you add a custom policy to the role, add the following permissions, and replace the Resource with your bucket name:

{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"s3:ListBucket"
],
"Resource": [
"arn:aws:s3:::rancher-backups"
]
},
{
"Effect": "Allow",
"Action": [
"s3:PutObject",
"s3:GetObject",
"s3:DeleteObject",
"s3:PutObjectAcl"
],
"Resource": [
"arn:aws:s3:::rancher-backups/*"
]
}
]
}

After the role is created, and you have attached the corresponding instance profile to your EC2 instance(s), the credentialSecretName directive can be left empty in the Backup custom resource.

Examples

For example Backup custom resources, refer to this page.
